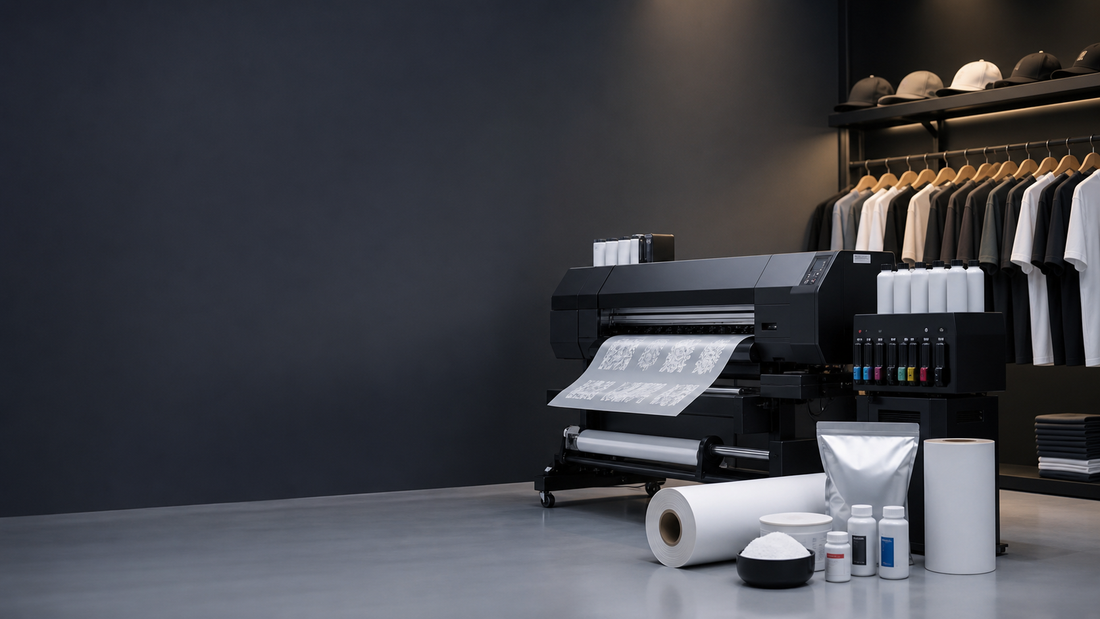

What Type Of Printer And Curing System Is Recommended For Professional Uv Dtf Output?

Producing high-quality custom graphics for hard surfaces requires specific equipment. If you want to know what type of printer and curing system is recommended for professional UV DTF output, the answer lies in specialized roll-to-roll UV printers equipped with dual or triple printheads, integrated UV LED lamps, and an inline cold laminator. Unlike traditional apparel printing, UV DTF (Direct-to-Film) technology prints adhesive graphics that can be applied to glass, metal, plastic, and ceramics without the need for a heat press.

This guide explains the hardware required to achieve durable, vibrant, and professional results, helping you decide whether to invest in your own machinery or order from a reliable provider.

Understanding Professional UV DTF Printing Technology

To understand the equipment requirements, it is helpful to know how the process works. UV DTF printing is entirely different from traditional apparel transfers. Traditional methods require specialized fabric inks and a heated powder shaker system. You can explore standard apparel options in the DTF transfers collection to see how those are categorized.

In contrast, UV DTF utilizes ultraviolet light to instantly cure ink as it is laid down on a specialized base layer, known as the A-film. This process creates a slightly raised, highly durable decal that is immediately ready for the next step in the production line.

The Mechanics of Film A and Film B

The UV DTF process relies on two distinct types of film. The printer deposits ink directly onto the A-film, which has an adhesive coating. After the ink is cured by the UV light, the machine applies a transfer mask, known as the B-film, over the top. The B-film protects the graphic and allows the user to peel the design off the A-film backing and apply it directly to a hard surface. Because of this two-film system, the ideal equipment must handle both printing and lamination simultaneously.

Choosing the Right UV DTF Printer

When selecting a machine for professional output, you must look for stability, precision, and speed. Entry-level desktop conversions often fail to deliver the consistency needed for high-volume orders or fine details. Professional shops rely on purpose-built machines designed specifically for UV inks.

Printhead Technology and Configurations

The printhead is the most critical component of the printer. For professional output, machines equipped with Epson i3200-U1 printheads are the current industry standard. These printheads are designed specifically for ultraviolet inks and offer superior droplet accuracy, which is essential for printing fine text and sharp edges.

A professional setup typically utilizes a multiple-printhead configuration. A two-head machine separates the white ink from the color and varnish, while a three-head machine dedicates a single printhead entirely to white ink, one to CMYK colors, and one to the clear varnish. The three-head system allows for faster production speeds and reduces the risk of ink mixing or printhead clogging.

Color Configuration and Varnish Capabilities

A standard professional UV DTF printer uses a CMYK plus White plus Varnish ink configuration. The white ink creates an opaque base layer, ensuring that the colors appear vibrant regardless of the surface color they are applied to. The CMYK inks provide the color image, while the clear varnish is printed on top.

The varnish layer is what gives UV DTF its signature premium look and scratch resistance. It can be layered to create textured, raised effects. If you want to see examples of this raised texture in action, check out the 3D decals available for order.

Roll-to-Roll vs. Flatbed Options

While some shops use flatbed UV printers to print directly onto objects, a roll-to-roll UV DTF printer is recommended for creating transferable decals at scale. A roll-to-roll system feeds continuous rolls of A-film through the print area, allowing for uninterrupted production of long gang sheets. This efficiency is why professional print shops prefer roll-fed systems over flatbeds when producing adhesive transfers for clients.

The Essential Role of the Curing System

In the UV DTF process, curing happens instantly during printing, eliminating the need for large conveyor dryers or heat presses. The curing system consists of two main parts: the UV lamps and the inline laminator.

Integrated UV LED Lamps

Professional UV DTF printers have UV LED lamps mounted directly on the print carriage. As the printheads pass over the film depositing ink, the lamps immediately follow, emitting high-intensity ultraviolet light. This light triggers a chemical reaction in the ink, turning it from a liquid to a solid polymer instantly.

For high-volume output, water-cooled LED lamps are recommended over air-cooled lamps. Water-cooled systems maintain a consistent temperature during long print runs, preventing the lamps from overheating and ensuring the ink cures completely without warping the delicate A-film.

The Cold Lamination Process

Immediately after the ink is cured, the machine must apply the B-film. Professional roll-to-roll machines feature an integrated cold laminator positioned just past the print zone. The laminator uses tension bars and pressure rollers to seamlessly press the B-film onto the printed A-film.

Using an inline laminator is highly recommended because it prevents dust or debris from settling on the sticky A-film before the protective mask is applied. It also applies consistent, even pressure across the entire width of the roll, eliminating air bubbles and ensuring the transfer peels perfectly when the end user is ready to apply it.

Alternatives to Printing In-House: Custom UV DTF Transfers

Investing in a professional UV DTF printer, complete with multiple i3200 printheads, water-cooled lamps, and an integrated laminator, requires significant capital. Furthermore, UV printers require strict daily maintenance and climate-controlled environments to prevent the inks from curing inside the printheads.

For many businesses, a more practical approach is to order pre-printed graphics from a dedicated facility. You can access commercial-grade quality without the equipment overhead by ordering custom UV DTF transfers directly.

Ordering UV DTF Gang Sheets

If you have multiple designs, logos, or decals to produce, consolidating them onto a single roll is the most cost-effective method. You can arrange your artwork onto a specific canvas size and submit the file for printing. To streamline this process, use the UV DTF gang sheet upload tool. This allows you to maximize your material usage and receive a continuous roll of ready-to-apply decals printed on top-tier commercial equipment.

Expanding Your Product Offerings

By outsourcing the printing process, you can focus on application, sales, and expanding your catalog. Beyond hard surface decals, you can also source other specialized items without needing the respective machinery. For example, you can easily add die-cut stickers or explore specialty transfers to offer your customers a wider variety of branding solutions.

Maximizing Your UV DTF Results

Whether you choose to operate your own roll-to-roll machine with integrated LED curing and lamination, or prefer to order from a professional supplier, understanding the technology ensures you get the best possible results. The right combination of UV-curable inks, precise printheads, and seamless cold lamination results in highly durable, waterproof, and scratch-resistant graphics.

If you are ready to start using these transfers for your business right away, you can explore the full range of custom printing options available at Transfer Depot to find the exact specifications you need for your next project.
